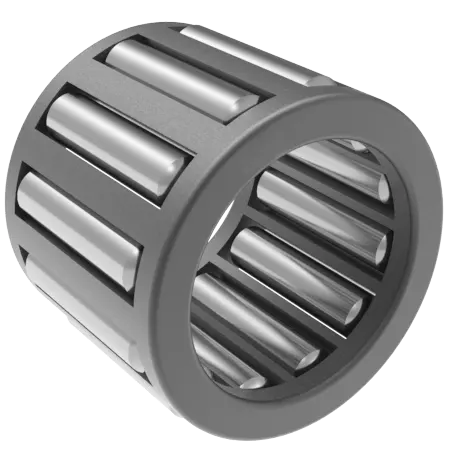

滚针和保持架组件连杆小端用内接圆径 9-19mm

外形尺寸（mm)			额定载荷(N)		额定载荷{kgf}		轴承代号	重量(kg)
F_W	E_W	B_c^-0.2_-0.4	C_r	C_0r	C_r	C_0r	轴承代号	(参考)
19	23	23.7	16000	25800	1630	2630	FBN-192323Z-E	17
18	22	23.6	15400	24100	1570	2460	FBN-182223Z-E	16
18	22	22	14200	21600	1440	2200	FBN-182222-E	15
18	22	17	11500	16500	1170	1680	FBN-182217-E	12
17	21	23	14800	22500	1510	2290	FBN-172123-E	16
16	21	20	14200	18100	1450	1840	FBN-162120-E	16
16	20	23.5	14900	22300	1520	2280	FBN-162023Z-E	15
16	20	22	13700	20000	1400	2040	FBN-162022-E	14
15	21	18	12900	13900	1310	1420	FBN-152118-E	13
15	19	18	11300	15300	1150	1560	FBN-151918-E	11
14	18	20	9550	12000	975	1230	FBN-141820-E1	13
14	18	18	10700	14000	1090	1430	FBN-141818-E	11.5
14	18	16.5	9250	11600	945	1180	FBN-141816Z-E	8.5
14	18	12	6950	8050	710	820	FBN-141812-E	6.5
12	16	16	8500	10000	865	1020	FBN-121616-E	7.5
12	16	15.5	8500	10000	865	1020	FBN-121615Z-E	7
12	16	13	7250	8200	740	835	FBN-121613-E	6.4
12	15	14.3	6400	8400	655	855	FBN-121514Z-E	4.8
10	14	12.7	5900	5950	605	610	FBN-101412Z-E	5
9	12	11.5	4200	4500	430	460	FBN-91211Z-E	3.5
