带立式座 UCP2 是一款外球面轴承一体式带座单元，集成精密外球面轴承与铸铁立式轴承座，结构紧凑、安装便捷，自带自动调心性能，可有效补偿安装偏差与轴系同轴度误差；整体精度高、承载能力强、耐磨抗冲击，密封防尘结构设计能适配粉尘、潮湿等复杂工况，免维护易保养，广泛应用于输送设备、农机机械、轻工设备、通用传动机械等领域，是工业传动支撑部位的优选配套配件。
| 轴径(mm，inch) | 座组件轴承 型号 | 尺寸(mm,inch) | 安装螺栓 规格(mm，inch) | 轴承代号 | 座外型号 | 带钢板外罩座 组件轴承型号 | 带铸铁外罩座 组件轴承型号 | 尺寸(mm,inch) | 带座轴承重量(kg) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

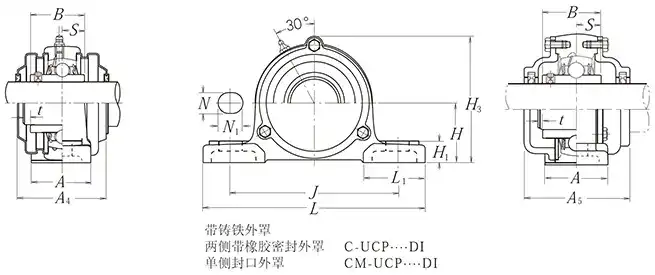

| h | L | J | A | N | N1 | H1 | H2 | L1 | B | S | t(最大) | A4 | H3 | A5 | UCP | Z(ZM) | C(CM) | |||||||
| 3 1/2 | UCP218-308D1 | 4 | 12 7/8 | 10 5/16 | 3 15/32 | 1 1/6 | 1 3/16 | 1 5/16 | 7 7/8 | 3 17/32 | 3.374 | 1.343 | 7/8 | UC218-30801 | P218D1 | - | C(CM)-UCP218-308D1 | 13/64 | - | 8 1/32 | 6 1/2 | 29 | - | 40 |
| 90 | UCP218D1 | 101.6 | 327 | 262 | 88 | 27 | 30 | 33 | 200 | 90 | 96 | 39.7 | M22 | UC218D1 | P218D1 | - | C(CM)-UCP218D1 | 5 | - | 204 | 165 | 13 | - | 18 |
| 3 7/16 | UCP217-307D1 | 3 3/4 | 12 7/32 | 9 23/32 | 3 9/32 | 31/32 | 1 3/32 | 1 1/4 | 7 3/8 | 3 11/32 | 3.374 | 1.343 | 3/4 | UC217-307D1 | P217D1 | - | C(CM)-UCP217-307D1 | 13/64 | - | 7 17/32 | 6 3/32 | 24 | - | 33 |
| 3 5/16 | UCP217-305D1 | 3 3/4 | 12 7/32 | 9 23/32 | 3 9/32 | 31/32 | 1 3/32 | 1 1/4 | 7 3/8 | 3 11/32 | 3.374 | 1.343 | 3/4 | UC217-305D1 | P217D1 | - | C(CM)-UCP217-305D1 | 13/64 | - | 7 17/32 | 6 3/32 | 24 | - | 33 |
| 3 1/4 | UCP217-304D1 | 3 3/4 | 12 7/32 | 9 23/32 | 3 9/32 | 31/32 | 1 3/32 | 1 1/4 | 7 3/8 | 3 11/32 | 3.374 | 1.343 | 3/4 | UC217-304D1 | P217D1 | - | C(CM)-UCP217-304D1 | 13/64 | - | 7 17/32 | 6 3/32 | 24 | - | 33 |
| 85 | UCP217D1 | 95.2 | 310 | 247 | 83 | 25 | 28 | 32 | 187 | 85 | 85.7 | 34.1 | M20 | UC217D1 | P217D1 | - | C(CM)-UCP217D1 | 5 | - | 191 | 155 | 11 | - | 15 |
| 3 3/16 | UCP216-303D1 | 3 1/2 | 11 1/2 | 9 1/8 | 3 1/16 | 31/32 | 1 3/32 | 1 3/16 | 6 7/8 | 3 11/32 | 3.252 | 1.311 | 3/4 | UC216-30301 | P216D1 | - | C(CM)-UCP216-303D1 | 5/32 | - | 7 1/8 | 5 23/32 | 20 | - | 29 |
| 2 11/16 | UCP216-302D1 | 3 1/2 | 11 1/2 | 9 1/8 | 3 1/16 | 31/32 | 1 3/32 | 1 3/16 | 6 7/8 | 3 11/32 | 3.252 | 1.311 | 3/4 | UC216-302D1 | P216D1 | - | C(CM)-UCP216-302D1 | 5/32 | - | 7 1/8 | 5 23/32 | 20 | - | 29 |
| 3 1/16 | UCP216-301D1 | 3 1/2 | 11 1/2 | 9 1/8 | 3 1/16 | 31/32 | 1 3/32 | 1 3/16 | 6 7/8 | 3 11/32 | 3.252 | 1.311 | 3/4 | UC216-301D1 | P216D1 | - | C(CM)-UCP216-301D1 | 5/32 | - | 7 1/8 | 5 23/32 | 20 | - | 29 |
| 80 | UCP216D1 | 88.9 | 292 | 232 | 78 | 25 | 28 | 30 | 175 | 85 | 82.6 | 33.3 | M20 | UC216D1 | P216D1 | - | C(CM)-UCP216D1 | 4 | - | 181 | 145 | 9 | - | 13 |
| 3 | UCP215-300D1 | 3 1/4 | 10 13/16 | 8 17/32 | 2 29/32 | 31/32 | 1 3/32 | 1 3/16 | 6 13/32 | 3 5/32 | 3.063 | 1.311 | 3/4 | UC215-300D1 | P215D1 | - | C(CM)-UCP215-300D1 | 5/32 | - | 6 3/8 | 5 5/16 | 16 | - | 24 |
| 2 15/16 | UCP215-215D1 | 3 1/4 | 10 13/16 | 8 17/32 | 2 29/32 | 31/32 | 1 3/32 | 1 3/16 | 6 13/32 | 3 5/32 | 3.063 | 1.311 | 3/4 | UC215-215D1 | P215D1 | - | C(CM)-UCP215-215D1 | 5/32 | - | 6 3/8 | 5 5/16 | 16 | - | 24 |
| 2 11/16 | UCP215-214D1 | 3 1/4 | 10 13/16 | 8 17/32 | 2 29/32 | 31/32 | 1 3/32 | 1 3/16 | 6 13/32 | 3 5/32 | 3.063 | 1.311 | 3/4 | UC215-214D1 | P215D1 | - | C(CM)-UCP215-214D1 | 5/32 | - | 6 3/8 | 5 5/16 | 16 | - | 24 |
| 2 13/16 | UCP215-213D1 | 3 1/4 | 10 13/16 | 8 17/32 | 2 29/32 | 31/32 | 1 3/32 | 1 3/32 | 6 13/32 | 3 5/32 | 3.063 | 1.311 | 3/4 | UC215-213D1 | P215D1 | - | C(CM)-UCP215-213D1 | 5/32 | - | 6 3/8 | 5 5/16 | 16 | - | 24 |
| 75 | UCP215D1 | 82.6 | 275 | 217 | 74 | 25 | 28 | 28 | 163 | 80 | 77.8 | 33.3 | M20 | UC215D1 | P215D1 | - | C(CM)-UCP215D1 | 4 | - | 168 | 135 | 7.4 | - | 11 |
| 2 3/4 | UCP214-212D1 | 3 1/8 | 10 15/32 | 8 9/32 | 2 27/32 | 31/32 | 1 3/32 | 1 3/16 | 6 3/16 | 3 1/32 | 2.937 | 1.189 | 3/4 | UC214-212D1 | P214D1 | - | C(CM)-UCP214-212D1 | 5/32 | - | 6 3/8 | 5 5/16 | 15 | - | 21 |
| 2 11/16 | UCP214-211D1 | 3 1/8 | 10 15/32 | 8 9/32 | 2 27/32 | 31/32 | 1 3/32 | 1 3/16 | 6 3/16 | 3 1/32 | 2.937 | 1.189 | 3/4 | UC214-21101 | P214D1 | - | C(CM)-UCP214-211D1 | 5/32 | - | 6 3/8 | 5 5/16 | 15 | - | 21 |
| 2 5/8 | UCP214-210D1 | 3 1/8 | 10 15/32 | 8 9/32 | 2 27/32 | 31/32 | 1 3/32 | 1 3/16 | 6 3/16 | 3 1/32 | 2.937 | 1.189 | 3/4 | UC214-210D1 | P214D1 | - | C(CM)-UCP214-210D1 | 5/32 | - | 6 3/8 | 5 5/16 | 15 | - | 21 |
| 70 | UCP214D1 | 79.4 | 266 | 210 | 72 | 25 | 28 | 27 | 157 | 77 | 74.6 | 30.2 | M20 | UC214D1 | P214D1 | - | C(CM)-UCP214D1 | 4 | - | 162 | 135 | 6.6 | - | 9.3 |
| 2 9/16 | UCP213-209D1 | 3 | 10 7/16 | 8 | 2 3/4 | 31/32 | 1 3/32 | 1 3/16 | 5 15/16 | 3 1/32 | 2.563 | 1 | 3/4 | UC213-209D1 | P213D1 | Z(ZM)-UCP213-209D1 | C(CM)-UCP213-209D1 | 5/32 | 3 19/32 | 6 3/32 | 4 23/32 | 13 | 14 | 17 |
