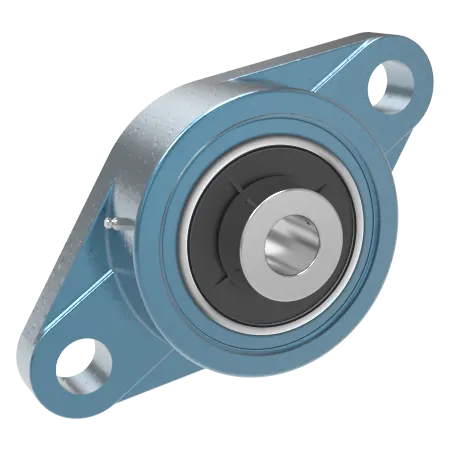

UCFL2 带菱形方形座外球面轴承单元，采用铸铁座体与精密外球面轴承组合一体，自带自动调心性能，可补偿安装同轴度偏差，密封结构防尘防杂物，运转稳定、承载均衡、安装固定便捷，适配轻工机械、输送设备、农机及通用传动设备，常规工况耐用省心，是设备旋转支撑常用标准配件。
| 轴径 | 座组件轴承 型号 | 尺寸(mm,inch) | 安装螺栓 规格(mm) | 座外型号 | 带钢板外罩座 组件轴承型号 | 带铸铁外罩座 组件轴承型号 | 尺寸(mm,inch) | 带座轴承重量(kg) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h | J | A2 | A1 | A | N | L | A0 | B | S | t(最大) | A4 | A5 | L1 | L2 | UCFL | Z(ZM) | C(CM) | ||||||
| 3 1/2 | UCFL218-308D1 | 12 19/32 | 10 7/16 | 1 37/64 | 15/16 | 2 11/16 | 63/64 | 8.17 | 3 51/64 | 3.78 | 1.563 | 7/8 | FL218D1 | - | C(CM)-UCFL218-308D1 | 13/64 | - | 4 13/16 | 8 1/16 | 4 1/32 | 24 | - | 31 |
| 90 | UCFL218D1 | 320 | 265 | 40 | 24 | 68 | 25 | 205 | 96.3 | 96 | 39.7 | M22 | FL218D1 | - | C(CM)-UCFL218D1 | 5 | - | 122 | 205 | 102 | 11 | - | 14 |
| 3 7/16 | UCFL217-307D1 | 12 | 9 49/64 | 1 27/64 | 15/16 | 2 15/32 | 63/64 | 7 15/32 | 3 29/64 | 3.374 | 1.343 | 7/8 | FL217D1 | - | C(CM)-UCFL217-307D1 | 13/64 | - | 4 1/2 | 7 9/16 | 3 3/4 | 21 | - | 24 |
| 3 5/16 | UCFL217-305D1 | 12 | 9 49/64 | 1 27/64 | 15/16 | 2 15/32 | 63/64 | 7 15/32 | 3 29/64 | 3.374 | 1.343 | 7/8 | FL217D1 | - | C(CM)-UCFL217-305D1 | 13/64 | - | 4 1/2 | 7 9/16 | 3 3/4 | 21 | - | 24 |
| 3 1/4 | UCFL217-304D1 | 12 | 9 49/64 | 1 27/64 | 15/16 | 2 15/32 | 63/64 | 7 15/32 | 3 29/64 | 3.374 | 1.343 | 7/8 | FL217D1 | - | C(CW)-UCFL217-304D1 | 13/64 | - | 4 1/2 | 7 9/16 | 3 3/4 | 21 | - | 24 |
| 85 | UCFL217D1 | 305 | 248 | 36 | 24 | 63 | 25 | 190 | 87.6 | 85.7 | 34.1 | M22 | FL217D1 | - | C(CM)-UCFL217D1 | 5 | - | 114 | 192 | 95 | 9.3 | - | 11 |
| 3 3/16 | UCFL216-303D1 | 11 13/32 | 9 11/64 | 1 11/32 | 7/8 | 2 9/32 | 63/64 | 7 3/32 | 3 9/32 | 3.252 | 1.311 | 7/8 | FL216D1 | - | C(CM)-UCFL216-303D1 | 5/32 | - | 4 3/16 | 7 7/32 | 3 17/32 | 18 | - | 24 |
| 3 1/8 | UCFL216-302D1 | 11 13/32 | 9 11/64 | 1 11/32 | 7/8 | 2 9/32 | 63/64 | 7 3/32 | 3 9/32 | 3.252 | 1.311 | 7/8 | FL216D1 | - | C(CM)-UCFL216-302D1 | 5/32 | - | 4 3/16 | 7 7/32 | 3 17/32 | 18 | - | 24 |
| 3 1/16 | UCFL216-30101 | 11 13/32 | 9 11/64 | 1 11/32 | 7/8 | 2 9/32 | 63/64 | 7 3/32 | 3 9/32 | 3.252 | 1.311 | 7/8 | FL216D1 | - | C(CM)-UCFL216-301D1 | 5/32 | - | 4 3/16 | 7 7/32 | 3 17/32 | 18 | - | 24 |
| 80 | UCFL216D1 | 290 | 233 | 34 | 22 | 58 | 25 | 180 | 83.3 | 82.6 | 33.3 | M22 | FL216D1 | - | C(CM)-UCFL216D1 | 4 | - | 106 | 183 | 90 | 8.2 | - | 24 |
| 3 | UCFL215-300D1 | 10 13/16 | 8 55/64 | 1 11/32 | 7/8 | 2 7/32 | 29/32 | 6 1/2 | 3 3/32 | 3.063 | 1.311 | 3/4 | FL215D1 | - | C(CM)-UCFL215-300D1 | 5/32 | - | 4 1/32 | 6 23/32 | 3 7/32 | 14 | - | 17 |
| 2 15/16 | UCFL215-215D1 | 10 13/16 | 8 55/64 | 1 11/32 | 7/8 | 2 7/32 | 29/32 | 6 1/2 | 3 3/32 | 3.063 | 1.311 | 3/4 | FL215D1 | - | C(CM)-UCFL215-215D1 | 5/32 | - | 4 1/32 | 6 23/32 | 3 7/32 | 14 | - | 17 |
| 2 7/8 | UCFL215-214D1 | 10 13/16 | 8 55/64 | 1 11/32 | 7/8 | 2 7/32 | 29/32 | 6 1/2 | 3 3/32 | 3.063 | 1.311 | 3/4 | FL215D1 | - | C(CM)-UCFL215-214D1 | 5/32 | - | 4 1/32 | 6 23/32 | 3 7/32 | 14 | - | 17 |
| 2 13/16 | UCFL215-213D1 | 10 13/16 | 8 55/64 | 1 11/32 | 7/8 | 2 7/32 | 29/32 | 6 1/2 | 3 3/32 | 3.06 | 1.311 | 3/4 | FL215D1 | - | C(CM)-UCFL215-213D1 | 5/32 | - | 4 1/32 | 6 23/32 | 3 7/32 | 14 | - | 17 |
| 75 | UCFL215D1 | 275 | 225 | 34 | 22 | 56 | 23 | 165 | 78.5 | 77.8 | 33.3 | M20 | FL215D1 | - | C(CM)-UCFL215D1 | 4 | - | 102 | 169 | 82 | 6.2 | - | 7.8 |
| 2.75 | UCFL214-212D1 | 10 7/16 | 8 1/2 | 1 7/32 | 7/8 | 2 1/8 | 29/32 | 6 5/16 | 3 | 2.937 | 1.189 | 3/4 | FL214D1 | - | C(CM)-UCFL214-212D1 | 5/32 | - | 3 27/32 | 6 15/32 | 3 5/32 | 12 | - | 16 |
| 2 11/16 | UCFL214-211D1 | 10 7/16 | 8 1/2 | 1 7/32 | 7/8 | 2 1/8 | 29/32 | 6 5/16 | 3 | 2.937 | 1.189 | 3/4 | FL214D1 | - | C(CM)-UCFL214-211D1 | 5/32 | - | 3 27/32 | 6 15/32 | 3 5/32 | 12 | - | 16 |
| 2 5/8 | UCFL214-210D1 | 10 7/16 | 8 1/2 | 1.21875 | 7/8 | 2 1/8 | 29/32 | 6 5/16 | 3 | 2.937 | 1.189 | 3/4 | FL214D1 | - | C(CM)-UCFL214-210D1 | 5/32 | - | 3 27/32 | 6 15/32 | 3 5/32 | 12 | - | 16 |
| 70 | UCFL214D1 | 265 | 216 | 31 | 22 | 54 | 23 | 160 | 75.4 | 74.6 | 30.2 | M20 | FL214D1 | - | C(CM)-UCFL214D1 | 4 | - | 98 | 164 | 80 | 5.6 | - | 7.3 |
| 2 9/16 | UCFL213-209D1 | 10 5/32 | 8 17/64 | 1 3/16 | 7/8 | 1 31/32 | 29/32 | 6 3/32 | 2 3/4 | 2.563 | 1 | 3/4 | FL213D1 | Z(ZM)-UCFL213-209D1 | C(CM}-UCFL213-209D1 | 5/32 | 3 | 3 17/32 | 6 3/16 | 3 1/16 | 11 | 11 | 15 |
